Transilluminator is used to study the results of electrophoretic patterns accurately. Gels after staining are placed on Transilluminator and the image can be seen directly by naked eye. The Transilluminators are designed and manufactured for extensive clarity and trouble-free performane.
The sensitivity of detection depends on the nature and intensity of light source used. We offer different types of UV, Visible and combined Transilluminators which are suitable for routine and advanced applications.
- Viewing Area of 10 x 10cm
- UV source with high range wavelength of (360nm)
- 4nos x 4 watts Compact UV tubes with safety fuse
- Cooling fan cum exhaust
- Orange acrylic UV shield for safety
- UV Source: 4nos x 4watts UV tube
- Wavelength: 365nm
- Filter: Orange filter
- UV Shield Cover: Orange Acrylic Shield
- Input: 220V AC 50-60Hz
- Fuse: 1Amp
- Dimensions: 22cm(L) x 23cm(D) x 10cm(H)
- Weight: 2.5 kg
| Ordering Information | ||
| Cat.No | Product | Units |
| MX-1286-01 | MEDOX-BIO® UV Transilluminator – Junior | Each |
| Ordering Information | ||
| Cat.No | Product | Units |
| MX-1901-01 | MEDOX-BIO® UV-Transilluminator-Junior Research (254nm) 10X10cm | Each |
- Viewing Area of 24 x 14cm
- UV source with high range wavelength of (360nm)
- 4nos x 8 watts UV tubes with safety fuse
- Cooling fan cum exhaust
- Orange acrylic UV shield for safety
- UV Source: 4nos x 8watts UV tube
- Wavelength: 365nm
- Filter: Orange filter
- UV Shield Cover: Orange Acrylic Shield
- Input: 220V AC 50-60Hz
- Fuse: 1Amp
- Dimensions: 32cm(L) x 20cm(D) x 14cm(H)
- Weight: 4 kg
| Ordering Information | ||
| Cat.No | Product | Units |
| MX-1280-01 | MEDOX-BIO® UV Transilluminator – Regular | Each |
| Ordering Information | ||
| Cat.No | Product | Units |
| MX-1902-01 | MEDOX-BIO® UV-Transilluminator-Bio Model (254nm) 20X10cm | Each |
| Ordering Information | ||
| Cat.No | Product | Units |
| MX-1903-01 | MEDOX-BIO® UV-Transilluminator-Bio Model (312nm) 20X10cm | Each |
UV Source with Mid wave lenth of 312nm Orange Acrylic Hinged UV blocking cover Cooling fan cum exhaust
Specification- Wavelength : 365nm
- Housing : Cover frame stainless steel, Bottom frame
- Mild Steel with powder coated
- Input : 220V AC, 50-60Hz
| Ordering Information | |||
| Cat.No | Viewing Area | Tubes | Units |
| MX-1285-01 | 20x20cms | 8nosx8watts | Each |
| MX-1285-02 | 26x26cms | 10nosx8watts | Each |
| MX-1285-03 | 20nosx40cms | 12nosx8watts | Each |
- Orange Hinged UV blocking cover
- Cooling fan cum exhaust
- Wavelenth : 312nm
- Housing : Cover frame stainless asteel, Bottom frame mild Steel with powder coated
- Input : 220V AC, 50-60Hz
| Ordering Information | |||
| Cat.No | Viewing Area | Tubes | Units |
| MX-1287-01 | 20x20cms | 8nosx8watts | Each |
| MX-1287-03 | 20x40cms | 12nosx8watts | Each |
- Orange Hinged UV blocking cover
- Cooling fan cum exhaust
- Wavelenth : 254nm
- Housing : Cover frame stainless asteel, Bottom frame mild Steel with powder coated
- Input : 220V AC, 50-60Hz
| Ordering Information | |||
| Cat.No | Viewing Area | Tubes | Units |
| MX-1297-01 | 20x20cms | 8nosx8watts | Each |
| MX-1297-03 | 20x40cms | 10nosx8watts | Each |
- Orange acrylic hinged UV blocking cover
- Cooling fan cum exhaust
- Wavelenth : 365 & 254nm
- Housing : Cover frame stainless asteel, Bottom frame mild Steel with powder coated
- Input : 220V AC, 50-60Hz
| Ordering Information | |||
| Cat.No | Viewing Area | Tubes | Units |
| MX-1298-01 | 20x20cms | 4×4+4×8 watts | Each |
| MX-1298-02 | 20x40cms | 6×8+6×8 watts | Each |
| Ordering Information | |||
| Cat.No | Viewing Area | Tubes | Units |
| MX-1904-01 | 20X20cm | 4×8+4×8 watts | Each |
| MX-1904-01 | 20X40cm | 6×8+6×8 watts | Each |
- Viewing Area of UV is 14 x 20cm and white light is 14 x 20 cm
- UV source with high range wavelength of (360nm)
- 4nos x 8 watts UV tubes along with four 8 watts compact fluorescent lamp with safety fuse
- Cooling fan cum exhaust
- Orange acrylic UV shield for safety
- Viewing Area: UV 14 x 20cm and White 14 x 20cm
- UV Source: 4nos x 8watts UV tube
- White Source: 4nos x 8 watts compact fluorescent lamp
- Wavelength: 365nm
- Filter: Orange filter
- UV Shield Cover: Orange Acrylic Shield
- Input: 220V AC 50-60Hz
- Fuse: 2 Amps
- Dimensions: 42cm (L) x 36cm (D) x 9cm(H)
- Weight: 5 kg
| Ordering Information | ||
| Cat.No | Product | Units |
| MX-1282-01 | MEDOX-BIO® UV – VIS Transilluminator – Regular | Each |
| Ordering Information | |||
| Cat.No | Viewing Area | Tubes | Units |
| MX-1905-01 | 20X10cm | 4×8+4×8 watts | Each |
| MX-1906-01 | 20X10cm | 4×8+4×8 watts | Each |
- Viewing Area of UV is 20 x 20cm and White is 20 x 20cm
- UV source with mid range wavelength of (360nm)
- 8 x 8 watts UV tubes along with eight 8 watts compact fluorescent lamp with safety fuse
- Cooling fan cum exhaust
- White acrylic transparent clear UV shield for safety
- Viewing Area: UV 20 x 20cm and White 20 x 20cm
- UV Source: 8nos x 8watts UV tube
- White Source: 8nos x 8watts compact fluorescent lamp
- Wavelength: 312nm
- Filter: Orange filter
- UV Shield Cover: Orange Acrylic UV Shield for safety
- Input: 220V AC 50-60Hz
- Fuse: 2.5 Amps
- Dimensions: 54cm(L) x 34cm (D)x 12 cm(H)
- Weight: 6 kg
| Ordering Information | |||
| Cat.No | Product | Tubes | Units |
| MX-1283-01 | MEDOX-BIO® UV-VIS Transilluminator – Research | 8×8+8×8 watts | Each |
| MX-1907-01 | MEDOX-BIO® UV VIS Transilluminator Research (254nm & White light) 20X20cm | 8×8+8×8 watts | Each |
| MX-1908-01 | MEDOX-BIO® Dual UV VIS Transilluminator Research (365,254nm & White light) 20X20cm | 2x(4×8)+4×8 watts | Each |
| MX-1909-01 | MEDOX-BIO® Dual UV VIS Transilluminator Research (365,312nm & White light) 20X20cm | 2x(4×8)+4×8 watts | Each |
| MX-1910-01 | MEDOX-BIO® Dual UV VIS Transilluminator Research (254,312nm & White light) 20X20cm | 2x(4×8)+4×8 watts | Each |
- UV source with high range wavelength of (360nm)
- 2 x 4 watts UV tubes
- Transparent window
- UV Source: 2 x 4watts UV tube
- Wavelength: 360nm
- Dimensions: 15cm(L) x 6cm(B) x 5cm(H)
- Weight: 0.6kgs
| Ordering Information | |||
| Cat.No | Product | Tubes | Units |
| MX-1284-01 | MEDOX-BIO® UV Hand Held Lamp | 2×4 watts | Each |
| MX-1911-01 | MEDOX-BIO® UV Hand Held Lamp Elite (254nm) | 2×4 watts | Each |
| MX-1912-01 | MEDOX-BIO® UV Hand Held Lamp Elite (365nm) | 2×4 watts | Each |
| MX-1913-01 | MEDOX-BIO® UV Hand Held Lamp Elite Dual (365 & 254nm) | 2×4+2×4 watts | Each |

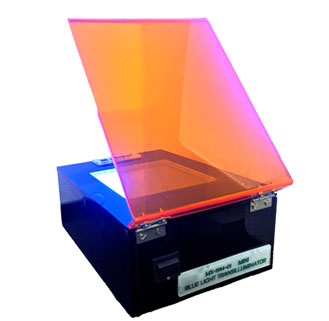

Dimensions
- Gel Viewing Area: 10 x 10cm
- Light Source: Blue LED’s ; LED Life:
- Wavelenght: 470nm;
- Filter Type:Amber Filter (580nm)
| Ordering Information | ||
| Cat.No | Product | Units |
| MX-1914-01 | MEDOX® Mini Blue Light Transilluminator | Each |
Dimensions
- Gel Viewing Area: 15 x 15cm
- Light Source: Blue LED’s ; LED Life:
- Wavelenght: 470nm;
- Filter Type:Amber Filter (580nm)
| Ordering Information | ||
| Cat.No | Product | Units |
| MX-1915-01 | MEDOX® Midi Blue Light Transilluminator | Each |
Dimensions
- Gel Viewing Area: 20 x 20cm
- Light Source: Blue LED’s ; LED Life:
- Wavelenght: 470nm;
- Filter Type:Amber Filter (580nm)
| Ordering Information | ||
| Cat.No | Product | Units |
| MX-1916-01 | MEDOX® Maxi Blue Light Transilluminator | Each |
| Ordering Information | ||
| Cat.No | Product | Units |
| MX-1917-01 | MEDOX® Blue LED Torch with Amber goggles | Each |
- Viewing Area of 24 x 14cm
- 4 x 8 watts compact fluorescent lamps with safety fuse
- Cooling fan cum exhaust
- Light Source: 4nos x 8watts compact fluorescent lamp
- Input: 220V AC, 50-60Hz
- Fuse: 1Amp
- Dimensions: 32cm (L) x 20cm (D) x 14cm (H)
- Weight: 3 kg
| Ordering Information | ||
| Cat.No | Product | Units |
| MX-1281-01 | MEDOX-BIO White Light Transilluminator | Each |
| Ordering Information | ||
| Cat.No | Product | Units |
| MX-1286-02 | Power Cord | Each |
| MX-1286-03 | UV Tube (365nm) | Each |
| MX-1286-04 | UV Tube (312nm) | Each |
| MX-1286-05 | UV Tube (254nm) | Each |
| MX-1286-06 | White Fluorescent Lamp | Each |
| MX-1286-07 | Safety Lid for UV Transilluminators | Each |
